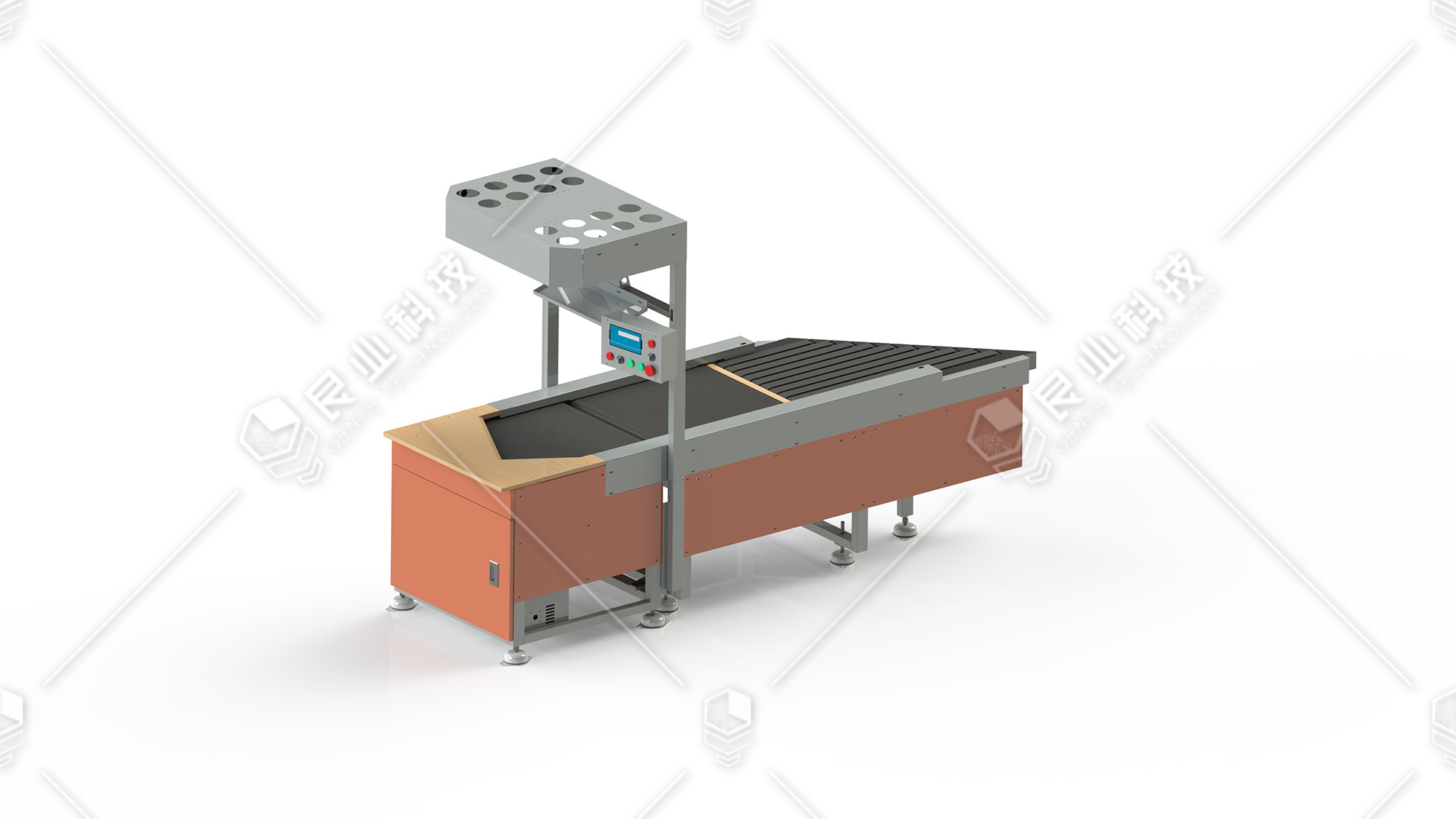

Induction System
Dimensions:
L=(800mm+800mm+1100mm)×W630mm×H850mm
Capacity:
single machine's efficiency is 2500 items/hr-3000 tiems/hr (excluding package and human factors)
The function of detection (weight of products):
when the weight of products exceeds the specified range, the induction machine will stop infeeding and warn.
The weighting range of the dynamic electronic scale: 0.01-20kg
Terminal:
Each machine is equipped with a set of visual scanning system to analyze and intercept the infeed information to avoid invalid parcels occupying the resources of the Carrier.

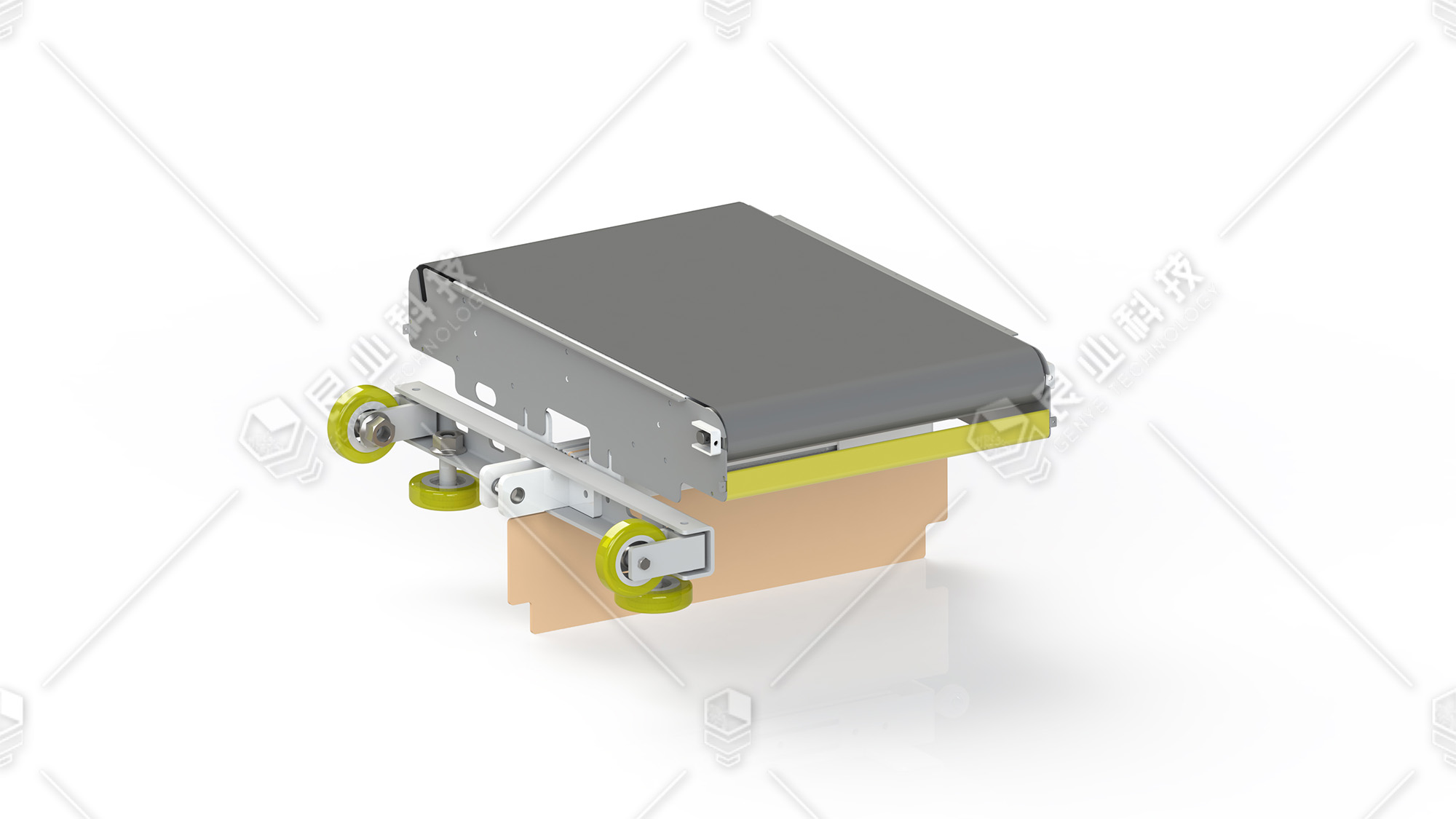

Sorting Carrier
Specification:
Pitch: 600mm
Disk size: 450*700mm
Band size: 426*700mm
The Sorting Carrier consists of belts, electric rollers, drive boxes, trolley frames, walking wheels, limit wheels, etc. The Carrier is easy to be assembled and replaced, and maintenance can be done without affecting capacity.
The Carrier belt adopts the domestic first-class brand belt product, which has the characteristics of high strength, wear resistance and cushioning performance.
The power of the Carrier adopts the permanent magnet servo electric roller, which has the control performance of rapid response. The intensive structure of the electric roller makes the Carrier lighter, effectively reducing the power consumption of the loop drive and improving the smooth running of the loop.
